SYP Glass Group uses ultra-low sheet resistance coating products in home appliance refrigeration/freezing cabinet products. With ultra-low single-sided sheet resistance coating substrate and a variety of insulated configurations suitable for customers, it is to ensure efficient performance and excellent insulation effect, to give customers a full range of design experience to meet a variety of stringent environmental requirements.
Feature
1.Use SYP-YLU0116 series coating glass with excellent thermal insulation performance
2.Tempered + single cavity insulated design can meet the cold storage needs of soft drinks and wine
3.Strong impact resistance, drop resistance and heat insulation performance
4.Can be combined with SYP panel series to form a variety of extended processing
5.Cabinet door integrated assembly, plastic frame section and color optional, customizable
6.Performance satisfaction of GB 15763.2《Safety Glass for Use in Construction - Part 2: Tempered Glass》
7.Performance satisfaction of GB/T 11944《Insulated Glass》

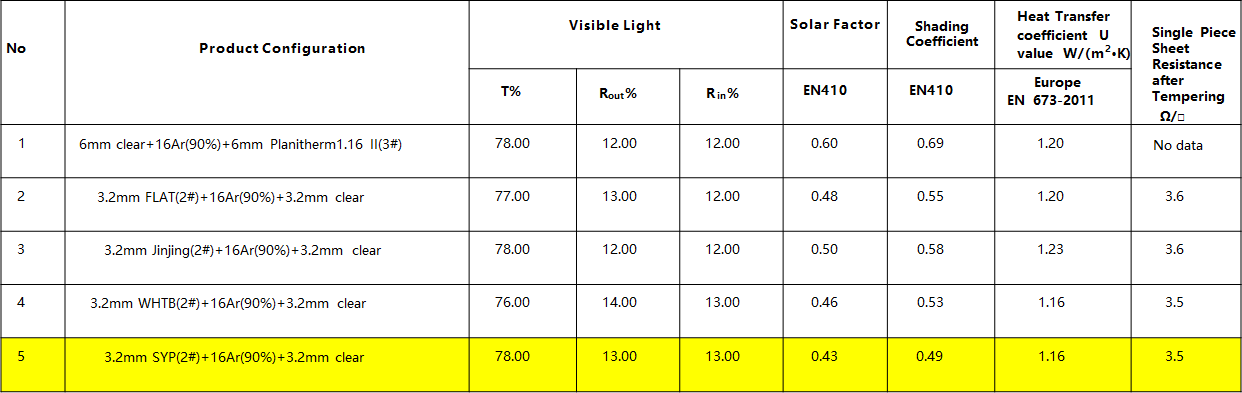

Performance data
Key Parameters
1.Beverage cabinet door assembly
Single glass thickness: 3.2~4.0mm
Max size: 2200*1050mm
Main material for door frame: ABS/PVC
 |
|

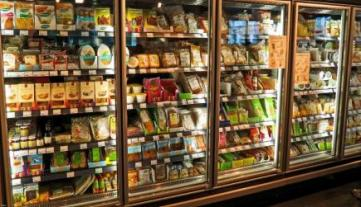

2.Supermarket cabinet door assembly
Single glass thickness: 3.2~4.0mm
Max size: 2200*1050mm
Main material for door frame: Aluminum alloy+PVC
Configuration：three-glass and two-cavity

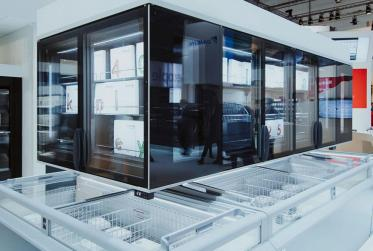

3.Composite overhead cabinet door assembly
Single glass thickness: 3.2~4.0mm
Max size: 2200*1050mm
Main material for door frame: PVC
Configuration：three-glass and two-cavity, electric heating
 |
 |
|
